Wire drawing trolley

Wire drawing trolley

ADVANTAGES
  • Heavy-duty construction and efficient so is able to lay all the steel wires simultaneously;
  • Fast operation;
  • 4 wheels independently driven by hydraulic motors to give maximum traction on the rails;
  • Independently diesel powered;
  • Operator’s seat.
The machine is used to lay the steel wires on the casting beds unwinding the cable from the wire coil holder trolley or the stackable strand decoilers.

The steel wires are fixed to the back of the trolley in two ways. One is by by means of quick coupling devices. The second is by using the movable anchor from the detensioning side’s reaction beam which is appropriately positioned on the trolley. The cables are then attached to the reaction beam using anchor grips.

The wire drawing trolley is particularly suitable for the drawing of wires in the production of multiple elements such as joists, posts and lintels where the number of cables to spread is high (up to 70 pigtails from 3x2,25mm) and is required a large capacity shot to avoid problems of wheel spin the machine on the rails of the track production.

To further increase the pulling power of the trolley it can be fitted with a winch that is attached with a suitable hook to the other end of the bed.


Gallery

Wire drawing trolley
Wire drawing trolley

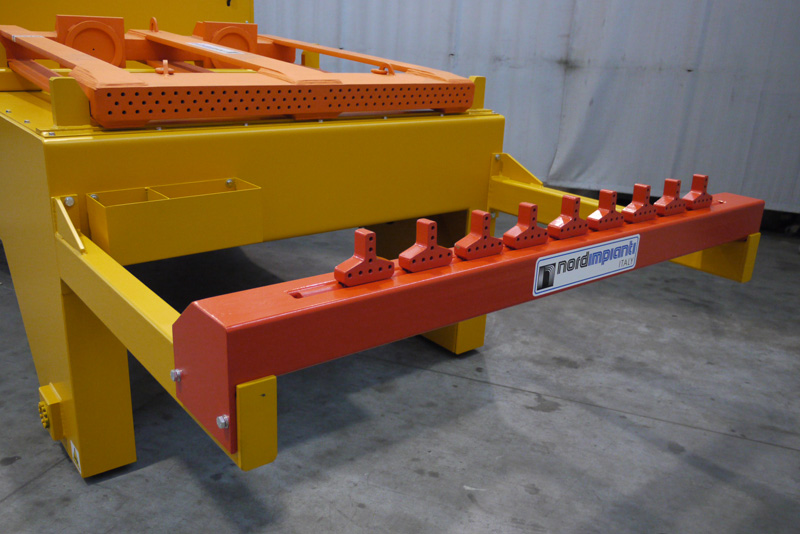

The anchor and the wire spacer in their positions on the trolley
The anchor and the wire spacer in their positions
Equipment to lift the movable anchor (Optional)
Equipment to lift the movable anchor (Op
High pulling capacity
High pulling capacity
Double wire drawing trolley
Double wire drawing trolley
